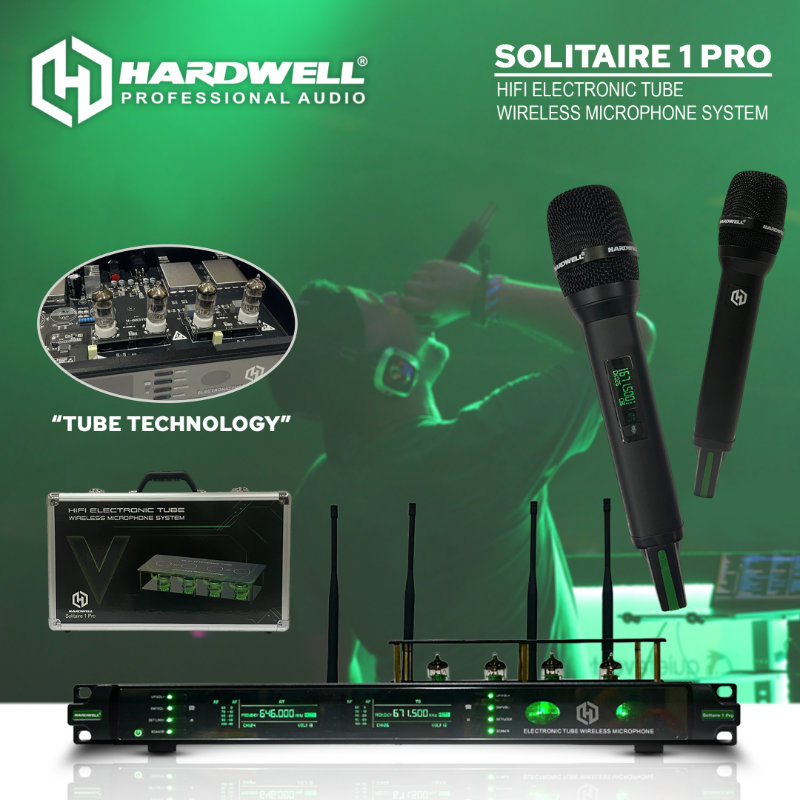

Wireless Mic Solitaire 1 Pro

Wireless Microphone

Wireless Mic Solitaire 1 Pro

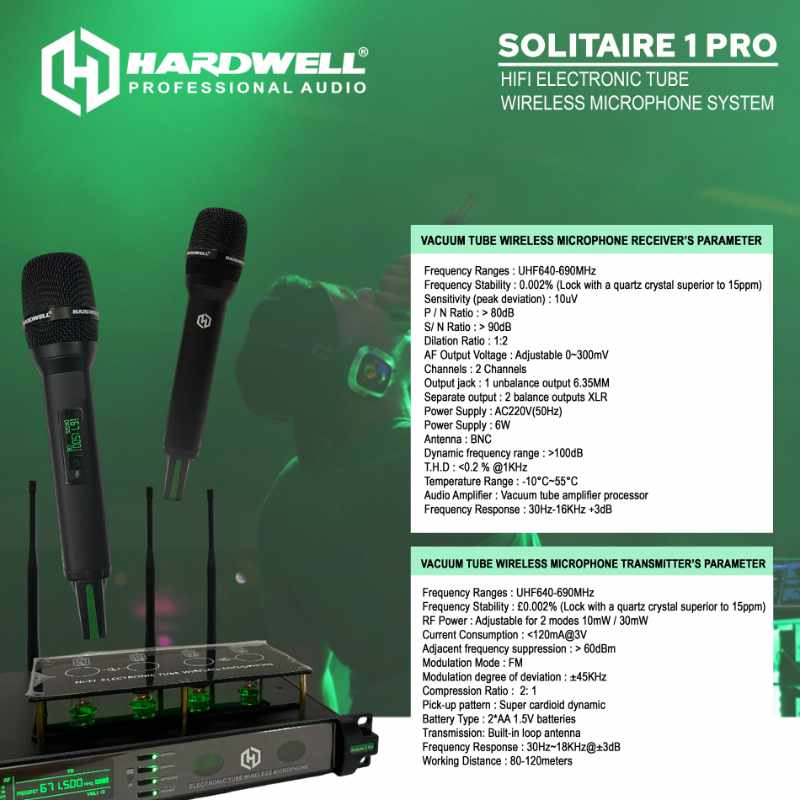

Vacuum tube wireless microphone transmitter’s parameter

Frequency ranges: UHF640 – 690MHz
Frequency stability:0,002% (lock with a quartz crystal superior to 15ppm)
RF power: adjustable for 2 modes 10mW/ 30mW
Current consumption: <120mA@3V
Adjacent frequency suppression: > 60dBm
Modulation mode: FM
Modulation degree of deviation: +45KHz
Compression ratio: 2-1
Pick-up pattern: super cardioid dynamic
Battery type: 2*AA 1,5V batteries
Transmission: built-in loop antenna
Frequency response: 30Hz – 18KHz@+3dB
Working distance: 80 – 120m

Category: Wireless Microphone

Description
Reviews (0)

Vacuum tube wireless microphone receiver’s parameter

Frequency range: UHF640 – 690 MHz
Frequency stability: 0,002% (lock with a quartz crystal superior to 15ppm)
Sensitivity (peak deviation): 10uV
P/N ratio: >80dB
S/N ratio: >90dB
Dilation ratio: 1:2
AF output voltage: adjustable 0 – 300mV
Channels: 2 channels
Output jack: 1 unbalance output 6,35mm
Separate output: 2 balance outputs XLR
Power supply: AC220V (50Hz)
Power supply: 6W
Antenna: BNC
Dynamic frequency range: >100dB
T.H.D: <0,2% @1KHz
Temperature range: -10°C – 55°C
Audio amplifier: vacuum tube amplifier processor
Frequency response: 30Hz – 16KHz +3dB
