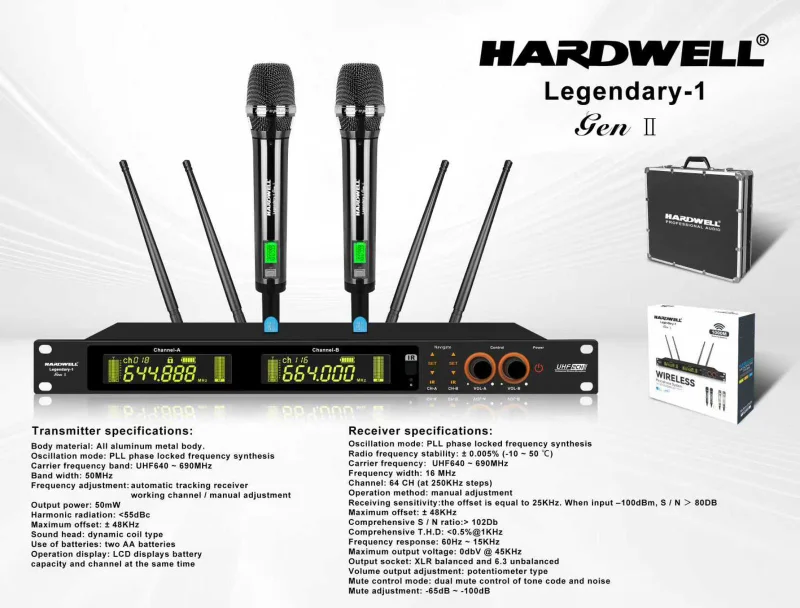

Wireless Mic Legendary 1 Gen II

Transmitter specifications:

• Body material: all aluminum metal body
• Oscillation mode: PLL phase locked frequency synthesis
• Carrier frequency band: UHF640-690MHz
• Band width: 50MHz
• Frequency adjustment:
  automatic tracking receiver
  working channel/ manual adjustment
• Output power 50mW
• Harmonic radiation: <55dBc
• Maximum offset: + 48KHz
• Sound head: dynamic coil type
• Use of batteries: two AA batteries
• Operation display: LCD display batery
• Capacity and channel at the same time

Receiver specifications:

• Oscillation mode: PLL phase locked frequency synthesis
• Radio frequency stability: + 0,005% (-10-50°C)
• Carrier frequency: UHF640 – 690MHz
• Frequency width: 16 MHz
• Channel: 64 CH (at 250KHz steps)
• Operation method: manual adjustment
• Receiving sensitivity: the offset is equal to 25KHz. When input -100dBm, S/N>80DB
• Maximum offset: + 48KHz
• Comprehensive S/N ratio: > 102Db
• Comprehensive T.H.D: <0,5%@1KHz
• Frequency response: 0dbV @ 45KHz
• Output socket: XLR balanced and 6,3 unbalanced
• Volume output adjustment: potentiometer type
• Mute control mode: dual mute control of tone code and noise
• Mute adjustment: -65dB-100dB
