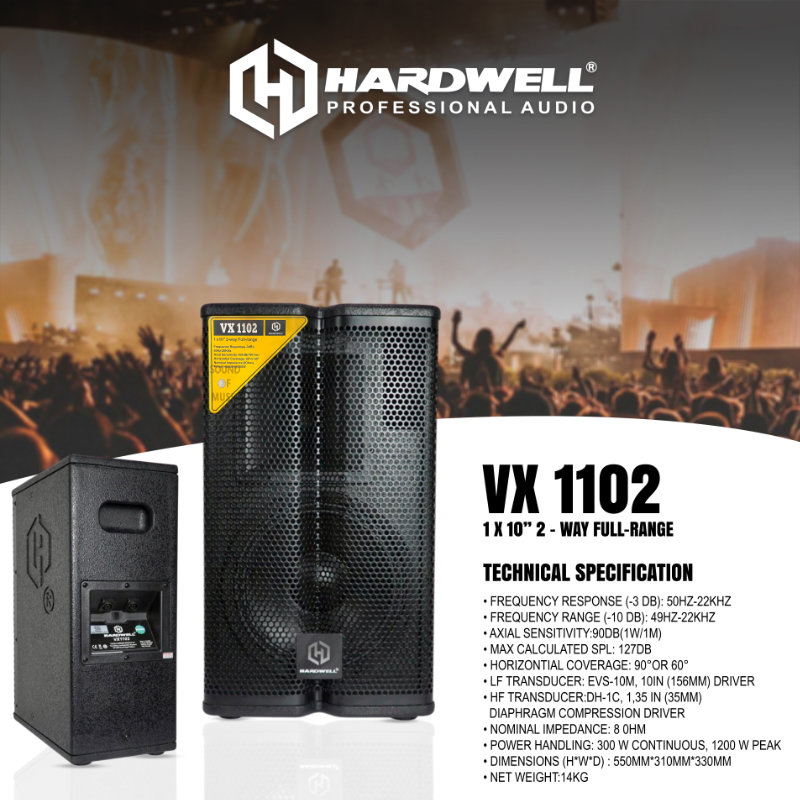

Passive Speaker VX 1102

VX 1102 1x 10″ 2-way full range

Technical specification

• Frequency response (-3dB): 50Hz-22KHz
• Frequency range (-10dB): 49Hz-22KHz
• Axial sensitivity: 90dB (1W/ 1m)
• Max calculated SPL: 127dB
• Horizontal coverage: 90° or 60°
• LF transducer: EVS-10m, 10in (156mm) driver
• HF transducer: DH-1C, 1,35 in (35mm)
  diaphragm compression driver
• Nominal impedance: 8 Ω
• Power handling: 300w continuous, 1200w peak
• Dimensions (H*W*D): 550mm*310mm*330mm
• Net weight: 14kg
