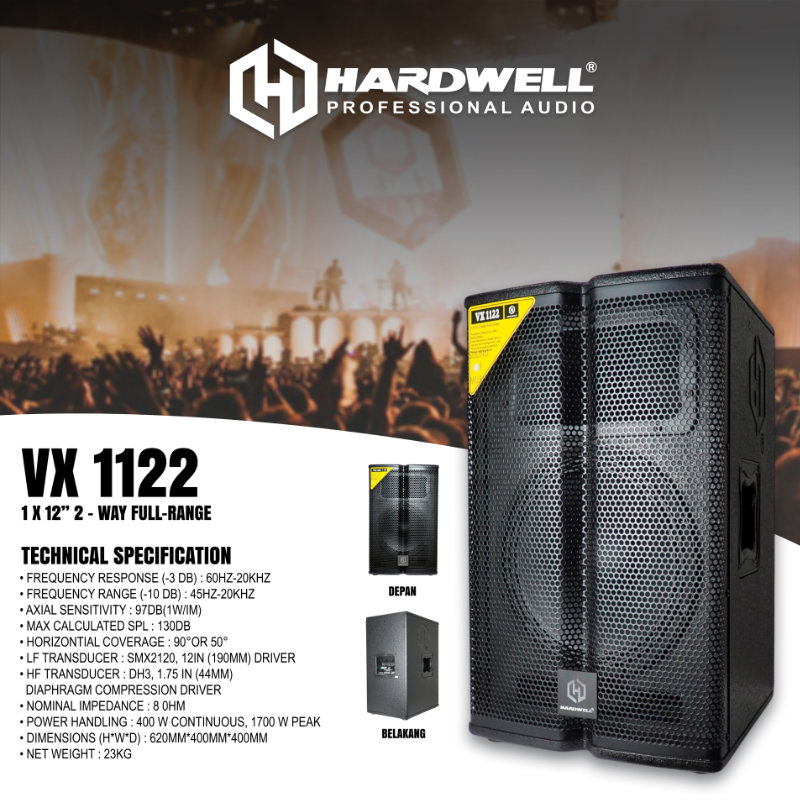

Passive Speaker VX 1122

VX 1122 1x 12″ 2-way full range

Technical specification

• Frequency response (-3dB): 60Hz-20KHz
• Frequency range (-10dB): 45Hz-20KHz
• Axial sensitivity: 97dB (1W/ 1m)
• Max calculated SPL: 130dB
• Horizontal coverage: 90° or 50°
• LF transducer: SMX2120, 12in (190mm) driver
• HF transducer: DH3, 1.75in (44mm)
  diaphragm compression driver
• Nominal impedance: 8 Ω
• Power handling: 400w continuous, 1700w peak
• Dimensions (H*W*D): 620mm*400mm*440mm
• Net weight: 23kg
