HPM 1090

Category:

Product Information

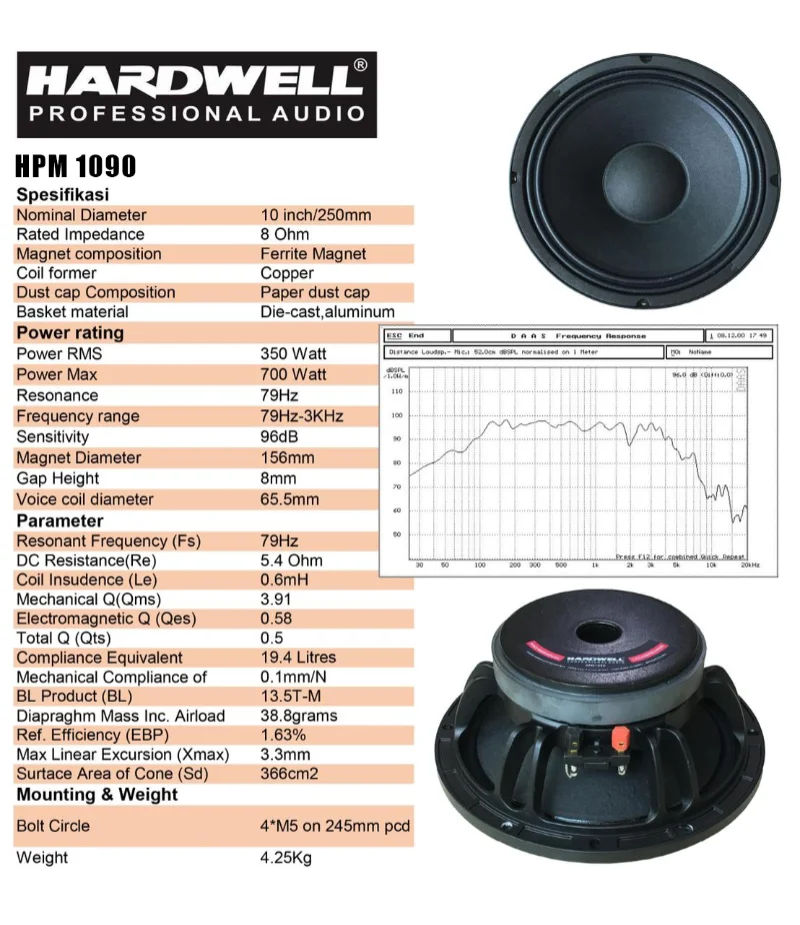

Spesifikasi :
– Nominal diameter: 10 Inch / 250 mm
– Rated Impedance: 8 Ohm
– Magnet composition: Ferrite Magnet
– Power RMS : 350 Watt
– Power MAX : 700 Watt
– Resonance: 79 Hz
– Frequency Range: 79 Hz – 3KHz
– Sensitivity : 96 db
– Magnet Diameter: 156 mm
– Voice Coil diameter: 65.5mm
– Resonant Frequency(Fs) : 79 Hz
– DC Resistance ( Re ): 5.4 Ohm
– Coil Impudence ( Le ): 0.6 mH
– Mechanical Q(QMs): 3.91
– Electromagnetic :Q (Qes): 0.58
– Total Q (Qts): 0.5
– Compliance Equivalent: 19.4 Litres
– Mechanical Compliance of: 0.1 mm/N
– BL Product (BL): 13.5T-M
– Diaphragm Mass Inc Airload: 38.8grams
– Ref Efficiency ( EBP ) : 1.63%
– Max Linear Excursion (Xmax) : 3.3mm
– Surface area of cone : 336 cm2



Garansi resmi 1 tahun Hardwell
