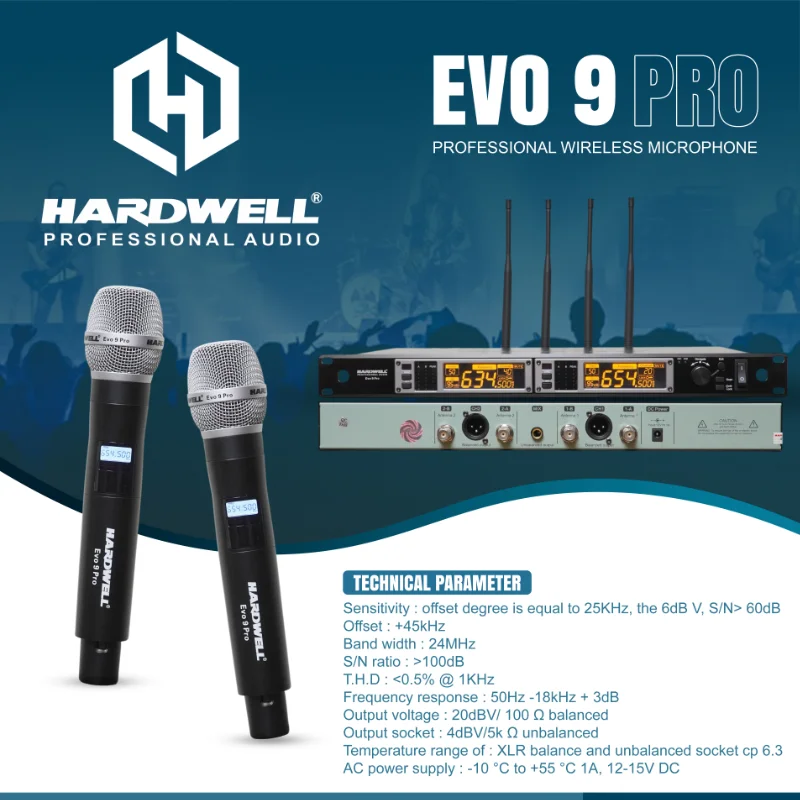

Specification:
- Chassis spesifications: standart 1U case
- Grup of channels: dual channel
- Carrier frequency:
615-665MHz
740-780MHz
780-820MHz
(Other brands can be customized) - Oscillation Mode: phase locked frequency synthesizer
- Sensitivity: offset degree is equal to 25KHz, the 6dB V, S/N> 60dB
- Offset: +45kHz
- Band width: 24MHz
- S/N ratio: >100dB
- T.H.D: <0.5% @ 1KHz
- Frequency response: 50Hz -18kHz + 3dB
- Output voltage: 20dBV/ 100 Ω balanced
- Output socket: 4dBV/5k Ω unbalanced
- Temperature range of: XLR balance and unbalanced socket cp 6.3
- AC power supply: -10 °C to +55 °C 1A, 12-15V DC
- weight: about 2090g
- Size: about 410 (wide) x 45 (high) x 231 (deep) mm
